Bonnell 775 AM

$4,295.00
By Bonnell

This product is unavailable

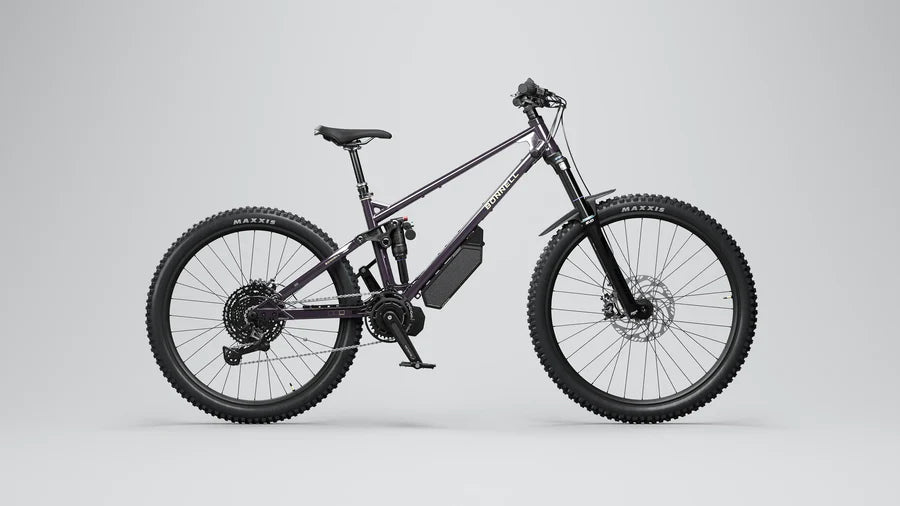

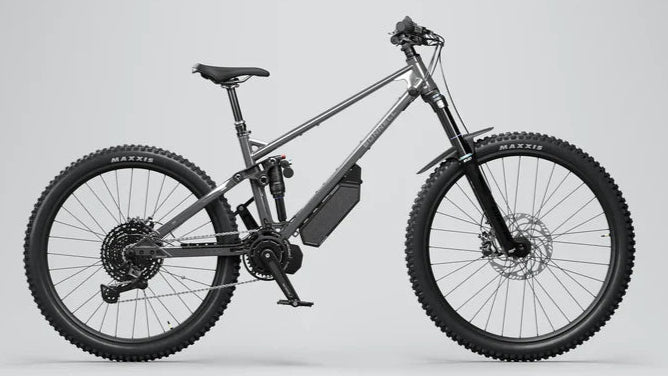

The 775 AM isn’t just a bike, it’s a shapeshifter. Built for every kind of rider—from first-timers to full-on trail junkies—it combines modern geometry with modular design and progressive suspension to handle any terrain you throw at it.

Frame

  • Progressive single pivot linkage driven suspension design, 150mm travel.
  • 4130 chromoly front triangle, twin downtube design, fully ED coated.
  • 6061 Aluminium chainstay, forged yoke, adjustable forged dropouts with 203mm Postmount brake interface.
  • UDH derailleur hanger.
  • 6061 Aluminium seatstays with removable bridge and forged bearing eyelets
  • Forged rocker arm
  • Full complement stainless steel sealed bearing, marine grease
  • Double sealed suspension pivot system for maximum durability
  • Dual crown fork rating up to 615mm axle to crown
  • Durable powder coating

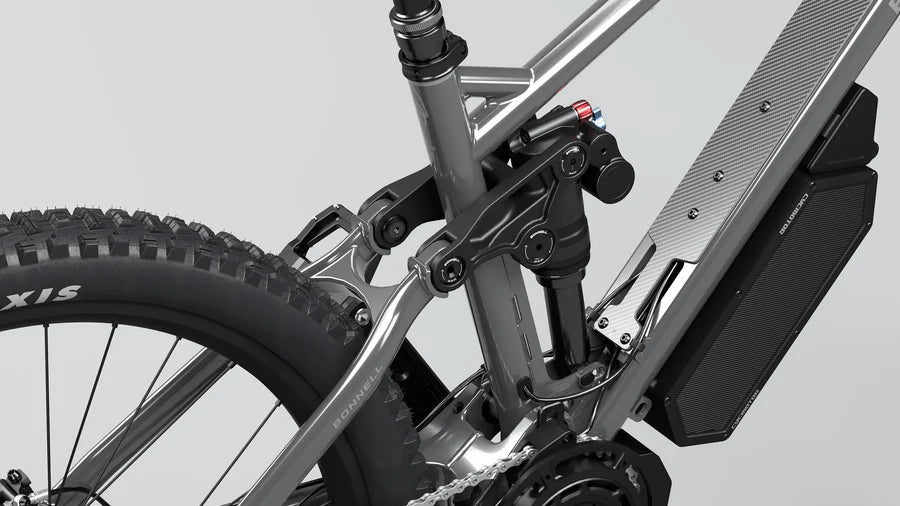

Rear Suspension

  • Suntour TriAir 3CR Bonnell AM custom tune
  • 3 positions compression lever and rebound adjuster
  • Trunnion 205*60mm. 25*8mm lower shock mount

Headset

  • Tapered ZS44 top
  • ZS56 bottom sealed bearings

Fork

  • Suntour Durolux 36X RC+ on S/M, Durolux 38X RC+ on L/XL, E-bike rated, tapered 1"1/8-1.5", 29"
  • 160mm travel
  • 40 mm offset
  • 15*110 Boost with tooled axle
  • Short integrated fender included.

E-SYSTEM

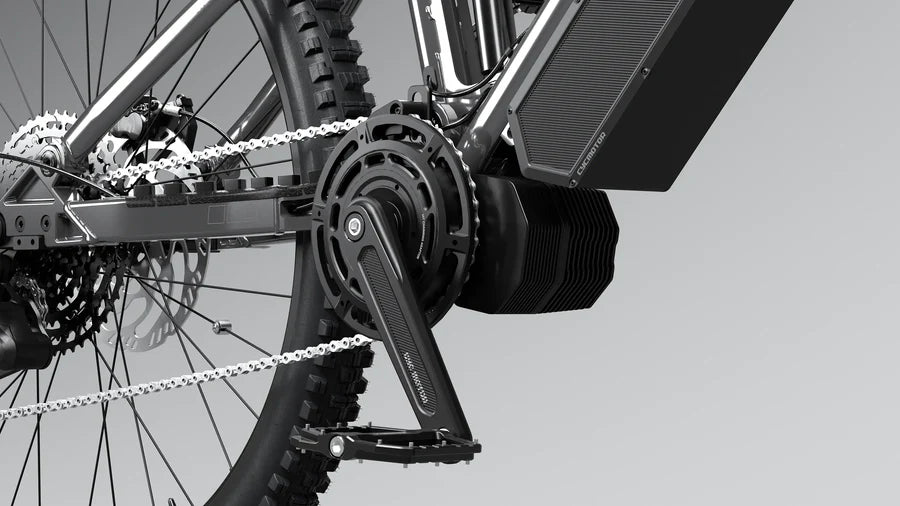

  • Drive Unit

  • CYC Photon
  • Chainring

  • CYC steel narrow wide 34T
  • Bashguard

  • CYC Heavy duty 6061T6 aluminium MTB bash ring 34-36T compatible
  • Battery

  • CYC A-Series quick connect 520Wh or 780Wh
  • Charger

  • CYC 4A charger
  • Display

  • CYC Intuition integrated smart display
  • Throttle

  • Thumb throttle

Drivetrain

  • Rear Derailleur

  • Tektro RD-M5100, 10speed, with clutch
  • Shifters

  • Tektro SL-M5000-10R, 10 speed
  • Rear Cogs

  • Microshift 10speed cassette CS-EH104 11-48T for e-bike
  • Chain

  • BKMC e10sport , EPT (anti rust)
  • Crank

  • CYC forged, 165mm
  • Chainguide

  • BONNELL guide compatible with 34-38T chainring

Brakes

  • Brakes

  • Magura MT5, 4pistons, MDR-C 220F/203R rotors
  • Brakes Levers

  • 2-finger aluminum light weight lever blade, flip flop design allows for regular or moto setup

Adjustment

  • Chainstay length can be set at 440mm or 452mm
  • 2 shock positions, comfort and sport mode

Wheels

  • Front Hub

  • Alex rims EMP5 15*110 Boost, E-bike hubs sandblasted finish
  • Rear Hub

  • Alex rims EMP5 12*148 Boost, E-bike hubs HG steel freehub body, super strong Impel ratchet system, 5 bearings, sandblasted finish
  • Brake Type

  • Disc 6 holes
  • Rims

  • Alex rims EMP5, E-bike reinforced, 30mm wide rims, tubeless ready, 36 holes, sandblasted finish
  • Spokes

  • Stainless Steel, 14g
  • Tire Size

  • 2.5" front and rear
  • Wheel Size

  • 27.5" rear, 29" front
  • Tires

  • Rear: Maxxis DHR II DD Maxx terra tubeless ready 2.5
  • Front : Maxxis Assegai DD Maxx grip tubeless ready 2.5
  • Tubes

  • Maxxis welter weight 2.5

Components

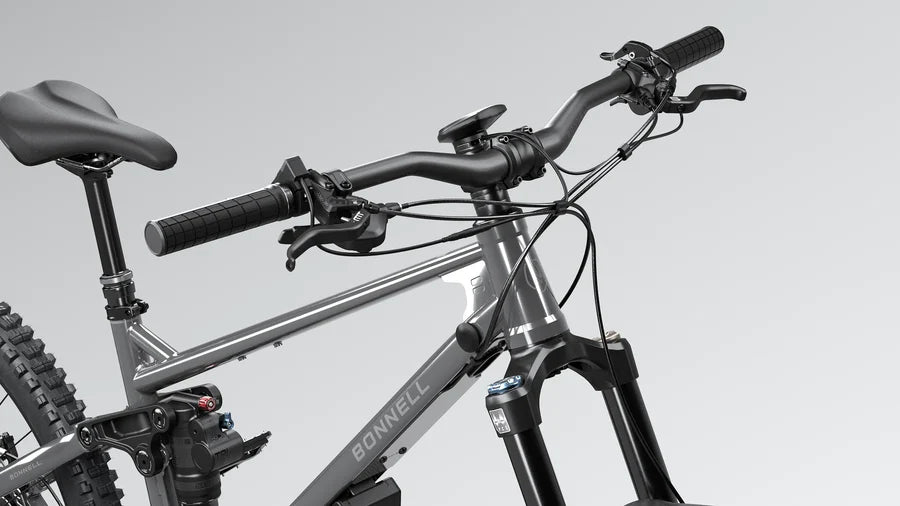

  • Handlebar

  • Bonnell 780mm, 31.8mm 35mm rise (small/medium) 50mm rise (large/XL) 9deg backsweep, black stealth finish
  • Stem

  • Bonnell forged, 45mm long, 31.8mm clamp, black stealth finish
  • Stem spacers

  • 5*5mm spacers included for height adjustement
  • Grips

  • Bonnell single clamp black stealth finish, tacky rubber, ergonomic and grippy pattern. Integrated bar plug (closed end), 30mm diameter on small/medium , 32mm diameter on large/XL

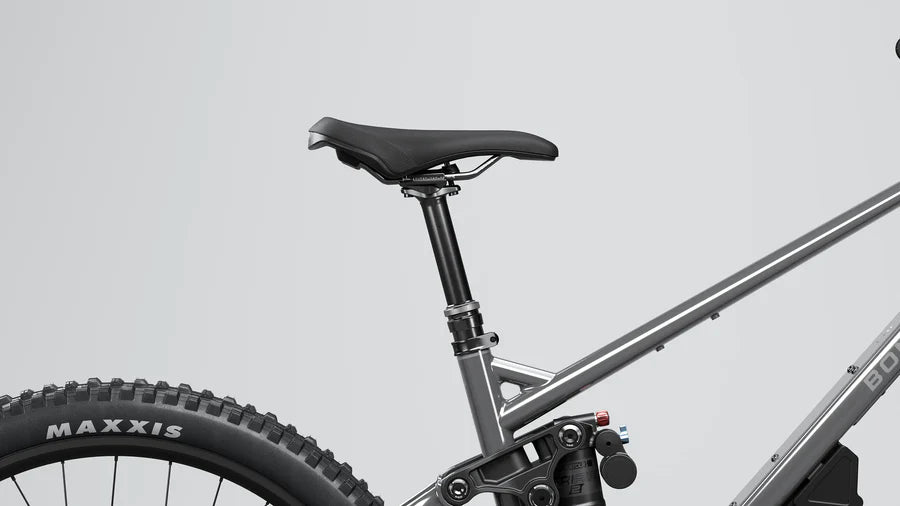

  • Saddle

  • Bonnell, by Velo, short nose, reinforced sides, cromoly rails, "I-carry" transport handle.
  • Seatpost lever

  • Tranz-X J22.2 thumb trottle compatible lever
  • Seat Clamp

  • Bonnell 34.9 black stealth single bolt
  • Seatpost

  • Tranz-X 30.9mm, 2 bolt saddle clamp, 7075 aluminium , hard anodized. Adjustable drop 140-170mm on S/M and 170-200mm on L/XL.

Connectivity

  • Wheel Sensor

  • CYC Bluetooth speed sensor.

Extra

  • Pedals

  • Bonnell flat pedals aluminium, 110*98mm platform size, 17mm thick, sealed bearing and bushing contruction.
  • Tubeless valves

  • 2 valves included in box
  • Multi tool

  • Bonnell 13 functions multi tool

Geometry & dimensions


Basic Geometry
Measurement S M L XL
A Seat Tube Length 380 405 430 460
B Top Tube Horizontal 589 618 638 667
C Head Tube Angle ° 64 64 64 64
D Seat Tube Angle Effective ° 77 76.9 77.2 77.3
E Standover 792 791 790 788
F Head Tube Length 108 117 127 137
G Wheelbase 1227 1257 1293 1325
H Front Center 787 817 841 873
I Chain Stay Length 440 440 452 452
J Bottom Bracket Drop 25 25 25 25
K Bottom Bracket Height 350 350 350 350
L Fork Axle to Crown 580 580 580 580
M Fork Rake 44 44 44 44
N Trail 131 131 131 131
O Stack 627 636 645 654
P Reach 445 470 492 520
